AN ISO 9001 : 2015
KIPPL offers wide range o quality Scaffolding Components. The product range includes, Scaffolding Tubes as per BS 1139, Scaffolding Components like Cuplok Systems, Props, Jacks, Fencing Panels, etc.

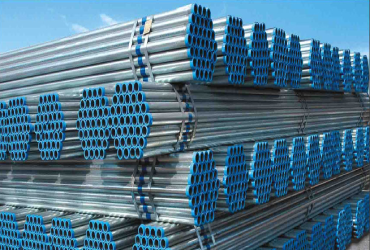

Scaffolding Tubes are widely used for supporting man and materials, tools and tackles during construction, alteration, demolition and maintenance works because of their several advantages over conventional type of timber/bamboo scaffolding.
| Size | Thickness | Weight | |
|---|---|---|---|
| mm | inches | mm | kg/mtr |
| 26.9 | 3/4 | 2.6 | 1.56 |
| 3.2 | 1.87 | ||
| 42.4 | 1 1/4 | 2.6 | 2.53 |
| 3.2 | 3.10 | ||
| 4.0 | 3.77 | ||
| 48.3 | 1 1/2 | 3.2 | 3.57 |
| 4.0 | 4.39 | ||
| 60.3 | 2 | 2.9 | 4.10 |
| 3.6 | 5.10 | ||
| 4.5 | 6.17 | ||
Tolerances |
||
|---|---|---|
| Outside Diameter | Thickness | Weight |
| ± 0.5mm | +/- 10% | +/- 7.5% ON SINGLE TUBE |
| Steel Grade |
S235 Alternatively we can also supply higher tensile strength tubes in steel grade S275 and S355 |
| End Finish | Square Cut or Bevelled |
| Delivery Condition |
Black (Self Coloured) Outside Protective Coating |

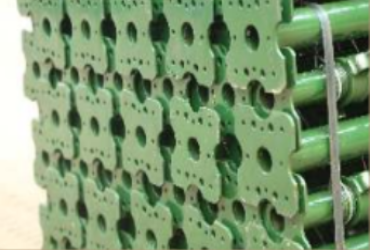

| Vertical / Standard | |
|---|---|
| Size | Weight (kg.) |
| 0.50 | 2.30 |
| 0.80 | 4.00 |
| 1.00 | 4.65 |
| 1.30 | 6.30 |
| 1.50 | 7.00 |
| 2.00 | 9.30 |
| 2.50 | 11.60 |
| 3.00 | 13.75 |
| Ledger | |
|---|---|
| Size | Weight (kg.) |
| 0.60 | 2.28 |
| 0.90 | 3.22 |
| 1.00 | 3.54 |
| 1.30 | 4.48 |
| 1.60 | 5.54 |
| 1.80 | 6.05 |
| 2.00 | 6.70 |
| 2.50 | 8.25 |

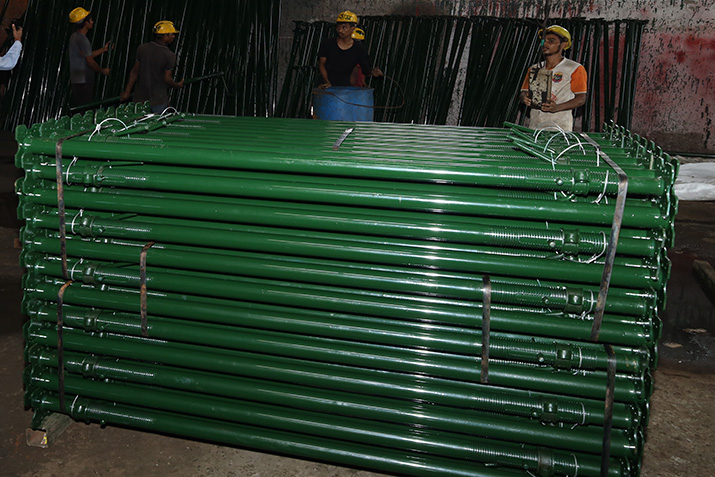

Props are manufactured from High Quality material with painted or galvanised finish for a long life & are highly resistant to site wear & tear.
They provide an ideal & the most economic method of support for all kind of framework, slabs, beams, walls & columns.
| Size | PAINTED PROPS | GALVANISED PROP | |
|---|---|---|---|
| Medium Duty | Heavy Duty | Heavy Duty | |
| 0 | 13.75 | 15.00 | 15.50 |
| 1 | 15.50 | 17.00 | 17.50 |
| 2 | 17.50 | 19.50 | 20.00 |
| 3 | 19.00 | 21.50 | 22.00 |
| 4 | 20.50 | 23.50 | 24.00 |
| Size | Length of Tube (m) | Extension (m) | Safe Axial Load (kg.) | |||
|---|---|---|---|---|---|---|
| External | Internal | Min. | Max. | When Closed | When Fully Extended | |
| 0 | 1.50 | 1.50 | 1.500 | 2.750 | 3200 | 2300 |
| 1 | 1.50 | 2.00 | 1.500 | 3.250 | 3000 | 2200 |
| 2 | 2.00 | 2.00 | 2.000 | 3.750 | 2900 | 2000 |
| 3 | 2.00 | 2.50 | 2.000 | 4.250 | 2600 | 1700 |
| 4 | 2.00 | 3.00 | 3.000 | 4.650 | 2300 | 1250 |
The Push Pull Props can be used on all types of building construction or for any type of use where an adjustable load-bearing member is required.
Push Pull Props are designed to hold & plumb single & double faced forms. The lower plate is to be fixed to a ground anchor & the top to the shutter.
Push Pull Props are used for safe installation on prefabricated concrete elements from the ground as a result, working operations become considerably faster because no ladders etc. are required. Everything can be safely assembled from the erection area
| Description | Length (m) | Weight (kg) | |
|---|---|---|---|
| Closed | Open | ||
| No. 0 | 1.14 | 1.829 | 15.80 |
| No. 1 | 1.85 | 3.124 | 23.00 |
| No. 2 | 2.08 | 3.352 | 24.00 |
| No. 3 | 2.69 | 3.962 | 27.00 |
| No. 4 | 3.30 | 4.876 | 31.60 |
The Trench Strut incorporates the same features as the adjustable prop. The standard head has square ends turned up for gripping timber trench support and is also ideal for use with trench sheeting and pilling.
| Type | Overall Length (m.) | Mass (kg) | Length (m.) | ||
|---|---|---|---|---|---|
| Closed | Closed | Inner | Outer | ||
| 0 | 0.30 | 0.46 | 5.2 | 0.30 | 0.28 |
| 1 | 0.46 | 0.69 | 6.7 | 0.45 | 0.44 |
| 2 | 0.71 | 1.08 | 9.2 | 0.70 | 0.64 |
| 3 | 1.02 | 1.68 | 13.7 | 1.01 | 0.96 |
Maximum safe working load on Trench Struts at all Extension is 28.83kg |
|||||
The Jacks are manufactured from M.S.Heavy Duty Pipes confirming to IS 1161 Standards. These jacks are designed for maximum load bearing & support. They are available Painted or Galvanised as per customer requirement. These jacks are available in different sizes and ranges of jacks are Base Jacks, Universal Jacks & U Head Jacks
| Size (mm) | Ttl.Ht / Adj.Ht.(mm) | Weight (kg) |
|---|---|---|
| 38mm OD | 450 / 350 | 2.75 |
| 38mm OD | 550 / 450 | 3.00 |
| 38mm OD | 650 / 550 | 3.40 |
| 38mm OD | 750 / 650 | 3.75 |
| Size (mm) | Ttl.Ht / Adj.Ht.(mm) | Weight (kg) |
|---|---|---|
| 38mm OD | 450 / 350 | 1.95 |
| 38mm OD | 550 / 450 | 2.25 |
| 38mm OD | 650 / 550 | 2.60 |
| 38mm OD | 750 / 650 | 2.90 |
| Size (mm) | Ttl.Ht / Adj.Ht.(mm) | Weight (kg) |
|---|---|---|
| 38mm OD | 450 / 350 | 3.15 |
| 38mm OD | 550 / 450 | 3.50 |
| 38mm OD | 650 / 550 | 3.85 |
| 38mm OD | 750 / 650 | 4.15 |
